212×104 Resolution 2.13inch E-Ink Display HAT for Raspberry Pi Communicating via SPI Interface Supports Yellow Black and White

Overview

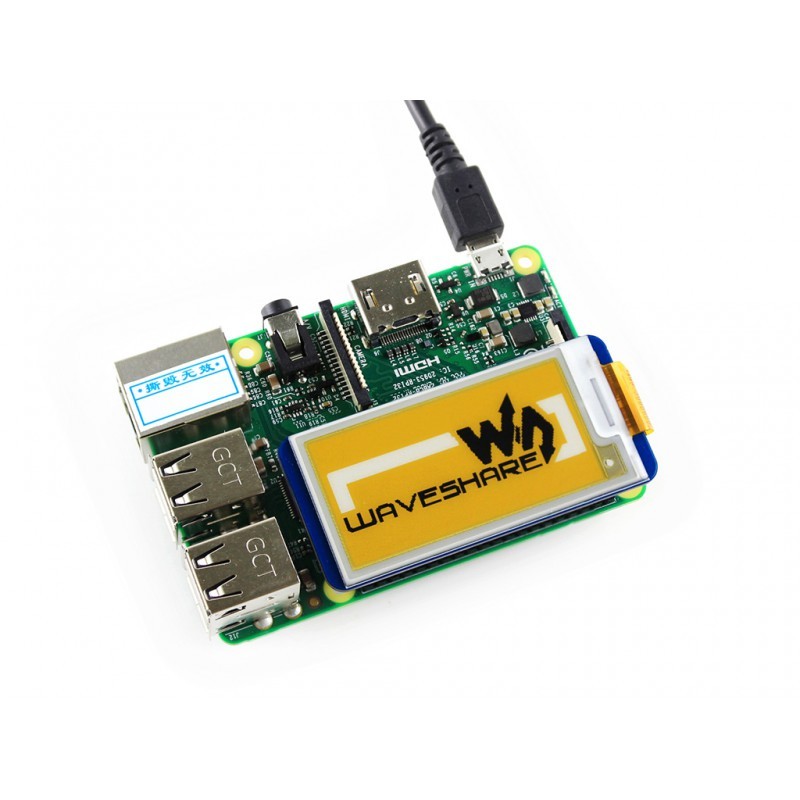

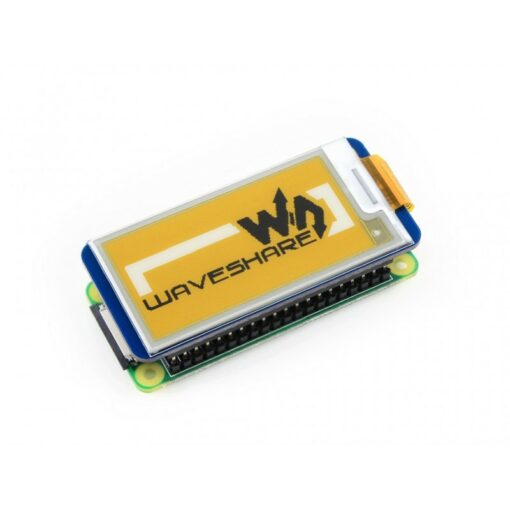

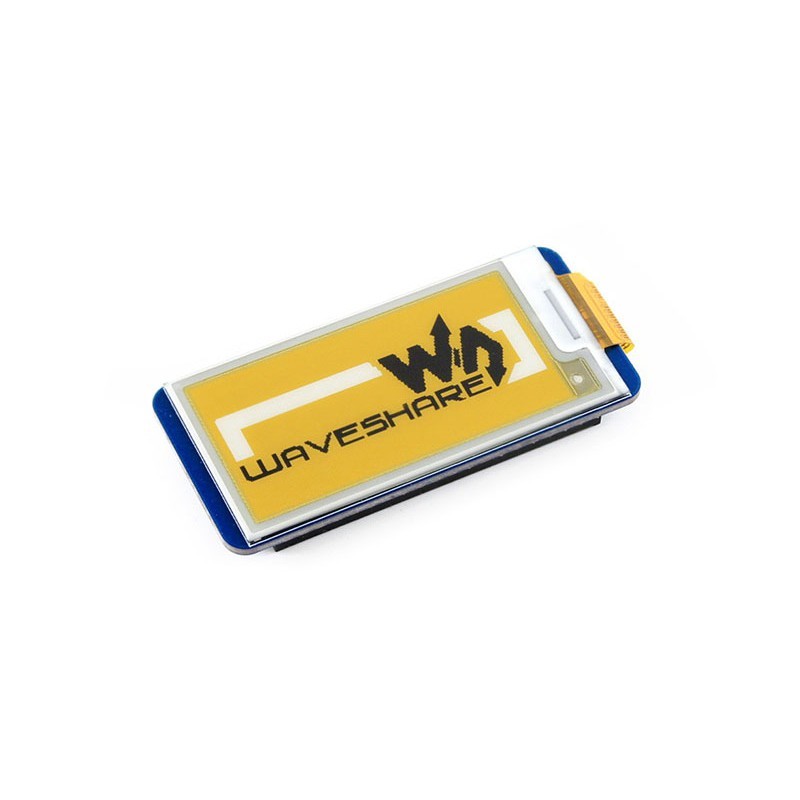

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212×104 resolution, with embedded controller, communicating via SPI interface, supports yellow, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

2.13inch e-Paper HAT (C) Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

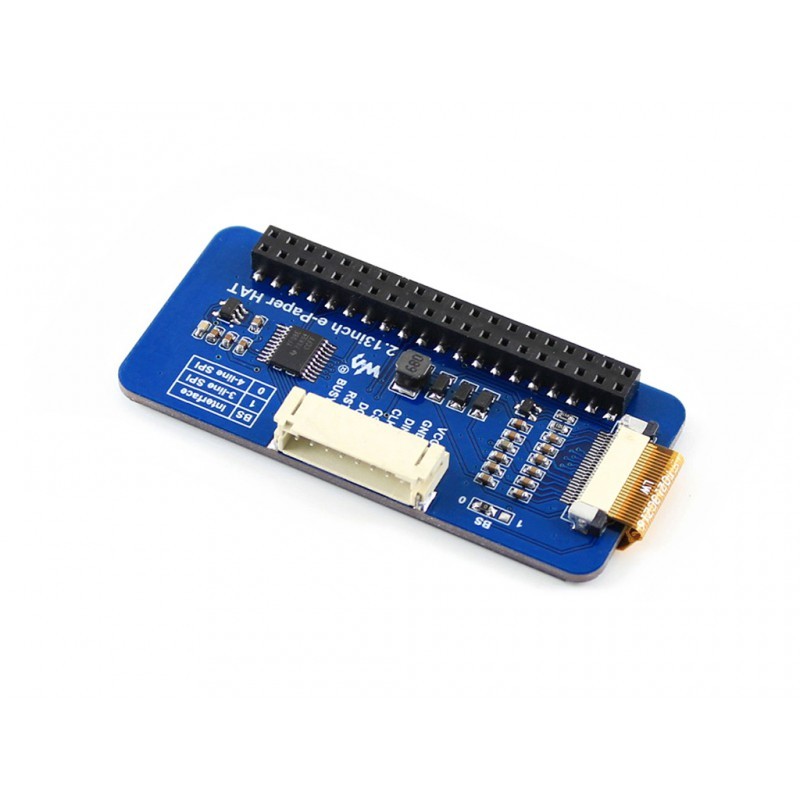

• Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

2.13inch e-Paper HAT (C) Specifications

• Operating voltage: 3.3V/5V
• Interface: 3-wire SPI, 4-wire SPI
• Outline dimension: 65mm × 30.2mm
• Display size: 23.71mm × 48.55mm
• Dot pitch: 0.229 × 0.228
• Resolution: 212 × 104
• Display color: yellow, black, white
• Grey level: 2
• Full refresh time: 15s
• Refresh power: 26.4mW(typ.)
• Standby power: <0.017mW
• Viewing angle: >170°

Interface

Dimensions

Package Content

Weight: 0.021 kg
